GigE Vision Cable

Custom GigE Vision Cable for Machine Vision

Koincable provides custom GigE Vision cable solutions for industrial cameras, frame grabbers, and machine vision systems. We support RJ45, M12 X-code connector options, with straight or angled exits, latch or screw-lock structures, and fully shielded designs for different installation needs.

Top Tips

Supports gigabit high-speed camera transmission.
Standard and drag chain cable versions are available to match different installation environments.
Multiple models are available for replacement based on different application scenarios.
Special PVC jacket construction makes the cable more suitable for industrial environments.
Complies with RoHS / Reach / UL compliant.

Specifications and Customization

Item	Standard	Drag Chain
Cable conductor size (AWG)	26#	26#
Cable outer diameter	6.2 mm	6.6 mm
Drag chain cycles	—	Over 20 million cycles
Rated voltage	30V	30V
Rated temperature	-20°C ~ 80°C	-20°C ~ 80°C
Differential impedance	100 ± 10Ω	100 ± 10Ω
Flammability rating	FT4	VW-1
Transmission distance	100m	100m

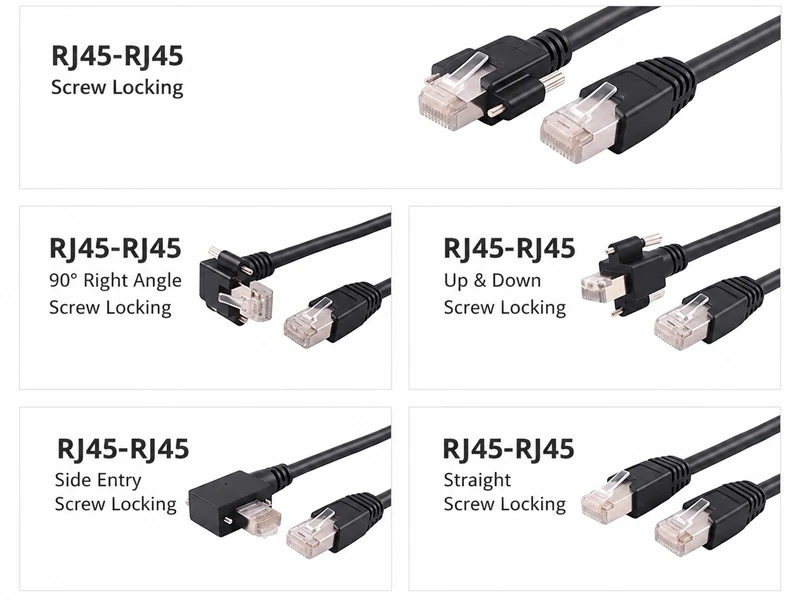

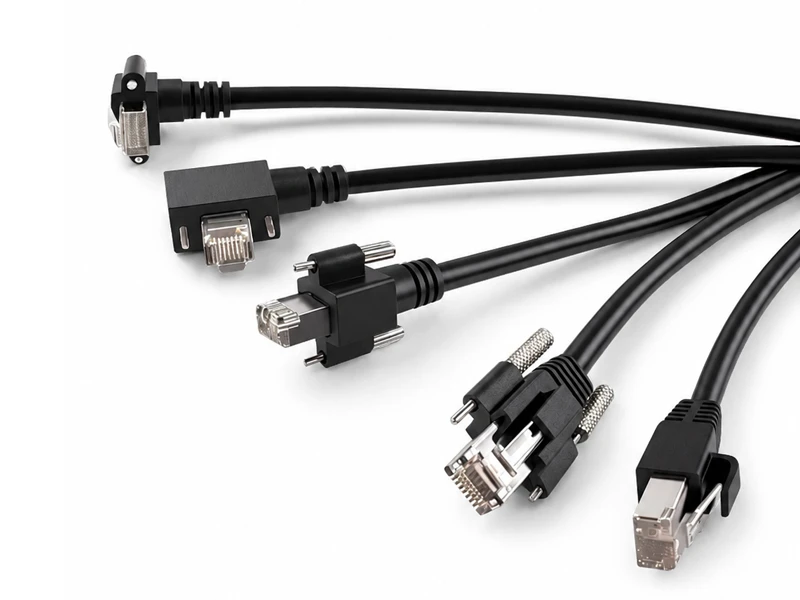

Custom Connectors

Can't find what you're looking for? Contact our elites.

System-Level GigE Vision Cable Performance

Our goal is to help you achieve stable high-speed transmission, stronger EMI protection, easier installation, and longer service life in demanding industrial environments.

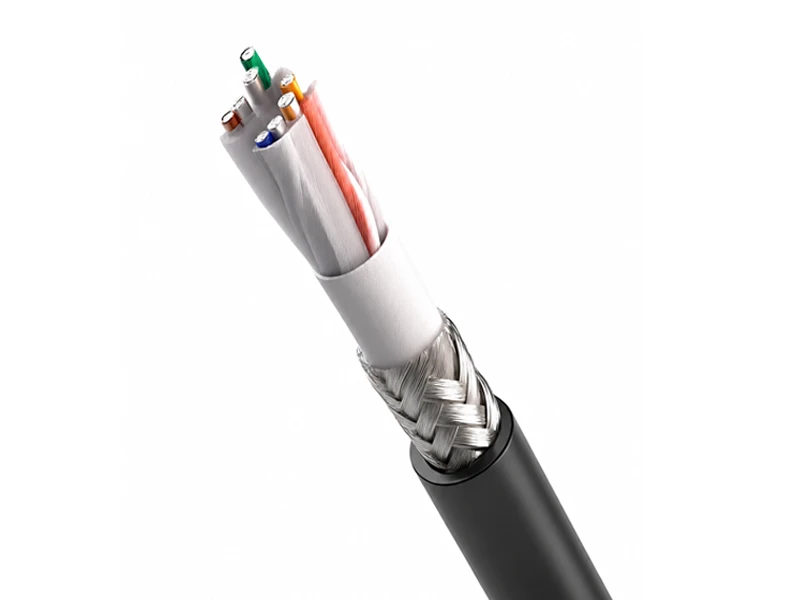

Defined Cable Structure

Dual shielding for stable signal transmission
VW-1 flame-retardant cable construction
Reduced EMI and external interference
High-purity conductors for lower loss
Durable structure for long-term reliability

10 Gbps. Defined Transmission.

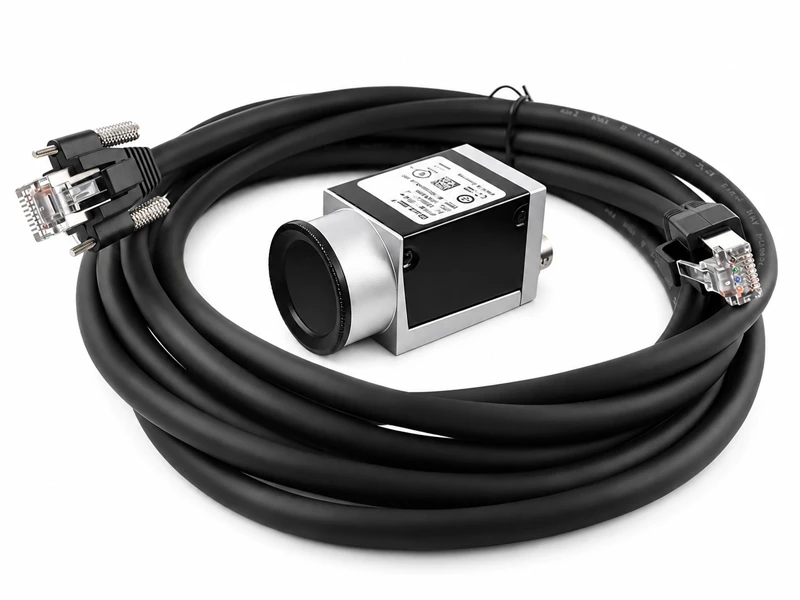

Engineered for Continuous Motion

20 million cycle rated drag chain cable
95 mm minimum bend radius
50 N tensile strength for sustained load conditions
Matte PVC jacket for abrasion resistance
Flexible routing for moving systems
